Butter Cup Filling And Sealing Machine

Butter Cup Filling And Sealing Machine

This automatic rotary grease cap filling and sealing machine is specially designed for filling grease, lubricating paste and other viscous materials. It integrates filling, capping and sealing functions. Molds can be customized for different cup shapes and sizes. Widely used in chemical and industrial lubricant industries.

  • BS-dz

  • EASTBEST PACK

  • grease cap fill seal machine

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

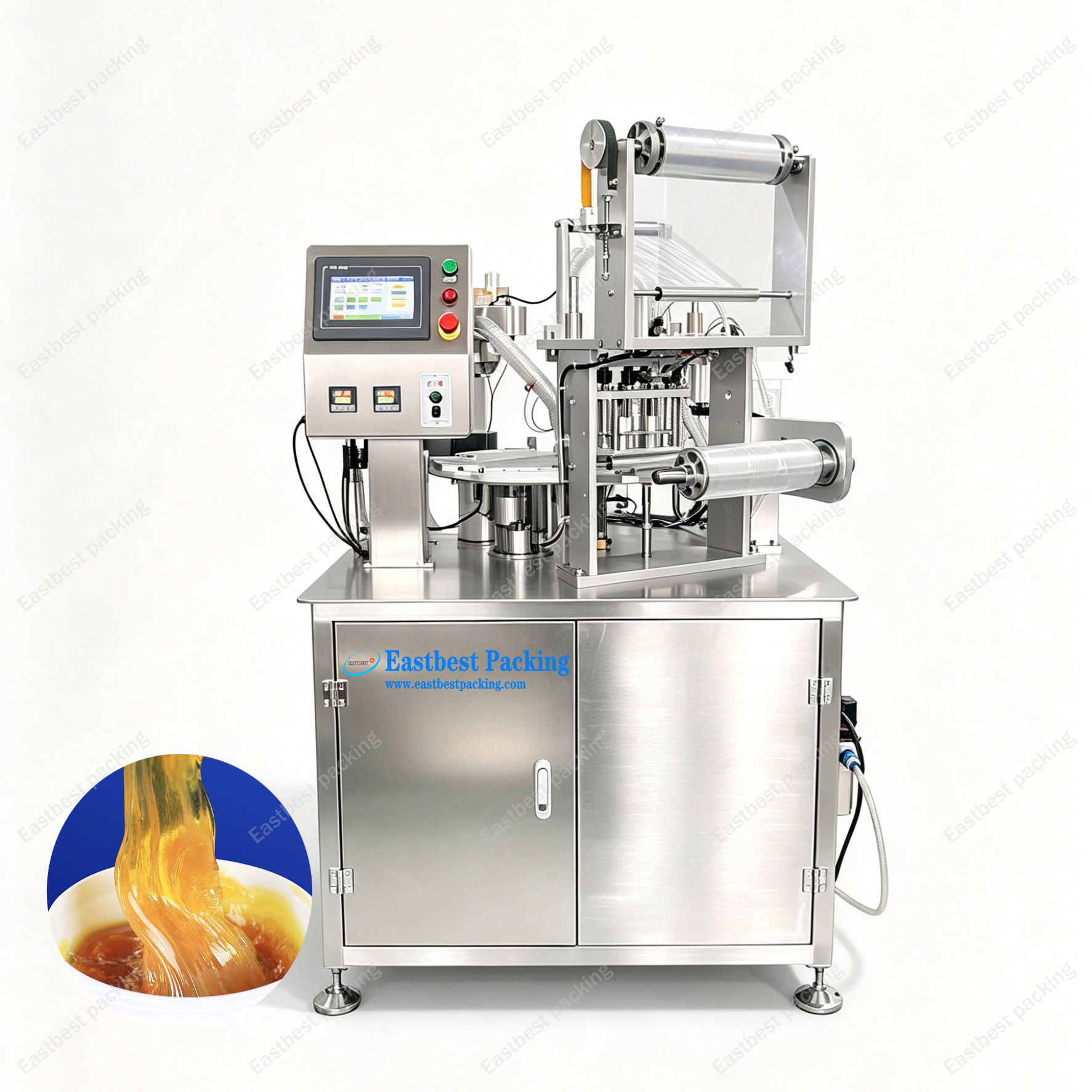

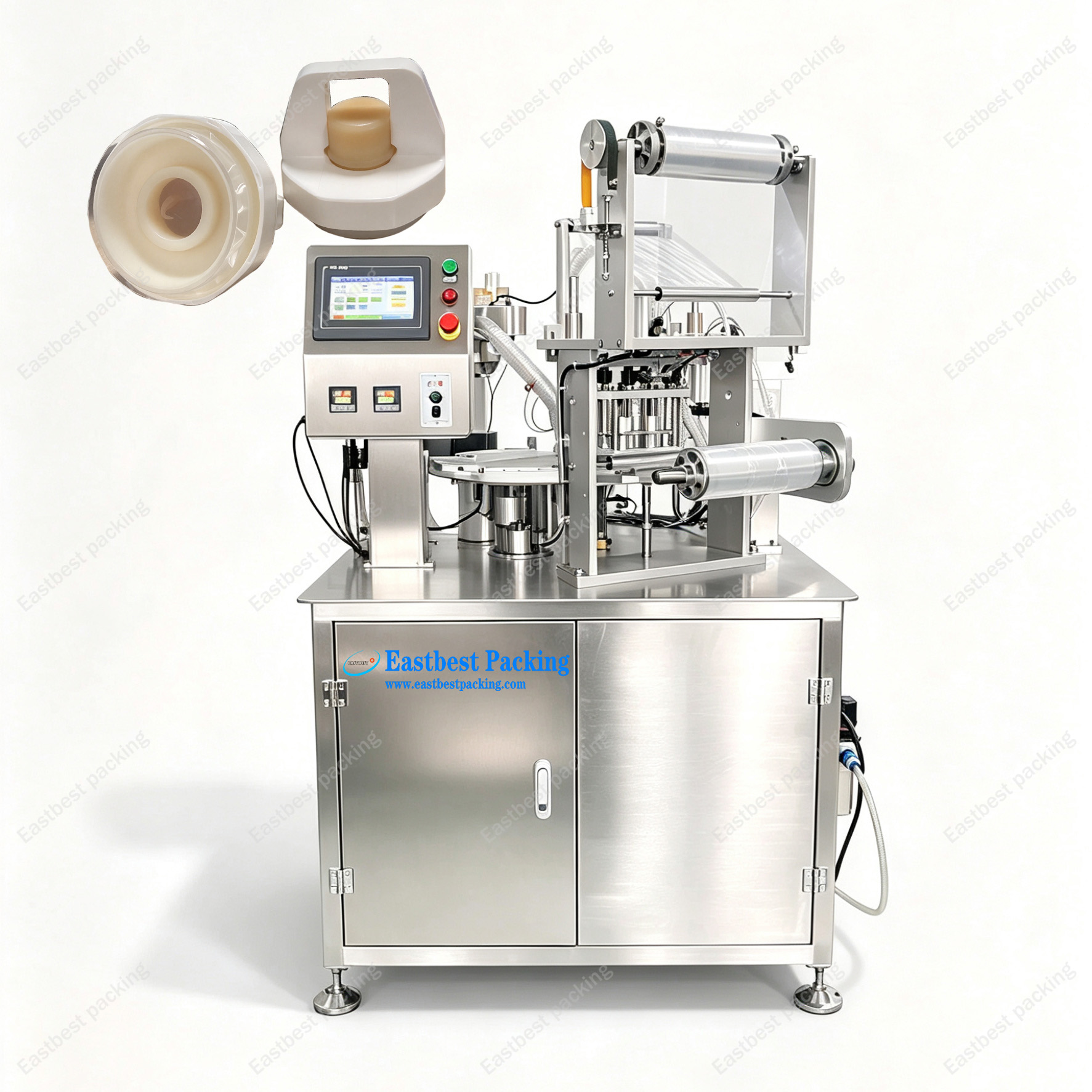

Our rotary grease cup filling, capping and sealing machine is an automatic integrated packaging solution for high-viscosity grease, lubricating paste and similar paste products.
Equipped with rotary indexing structure, the machine runs smoothly with stable operation and high production efficiency. It adopts servo filling system to achieve accurate quantitative filling, effectively preventing dripping and material waste.
This machine integrates multiple functions including automatic filling, capping and sealing. The labeling function is optional as required. Quick-change molds support different sizes and shapes of plastic cups and aluminum foil cups.
It is highly adaptable and can also be used for other paste materials besides lubricating grease. We support customized design according to customers’ production requirements, such as adjusting working stations, filling range and adding auxiliary devices.
Widely applied in the packaging of industrial lubricants, chemical pastes and other products. The whole machine adopts 304 stainless steel as standard. For special corrosive materials, 316 stainless steel is available as an option. The equipment is easy to clean and maintain, meeting industrial production standards.

Main body:

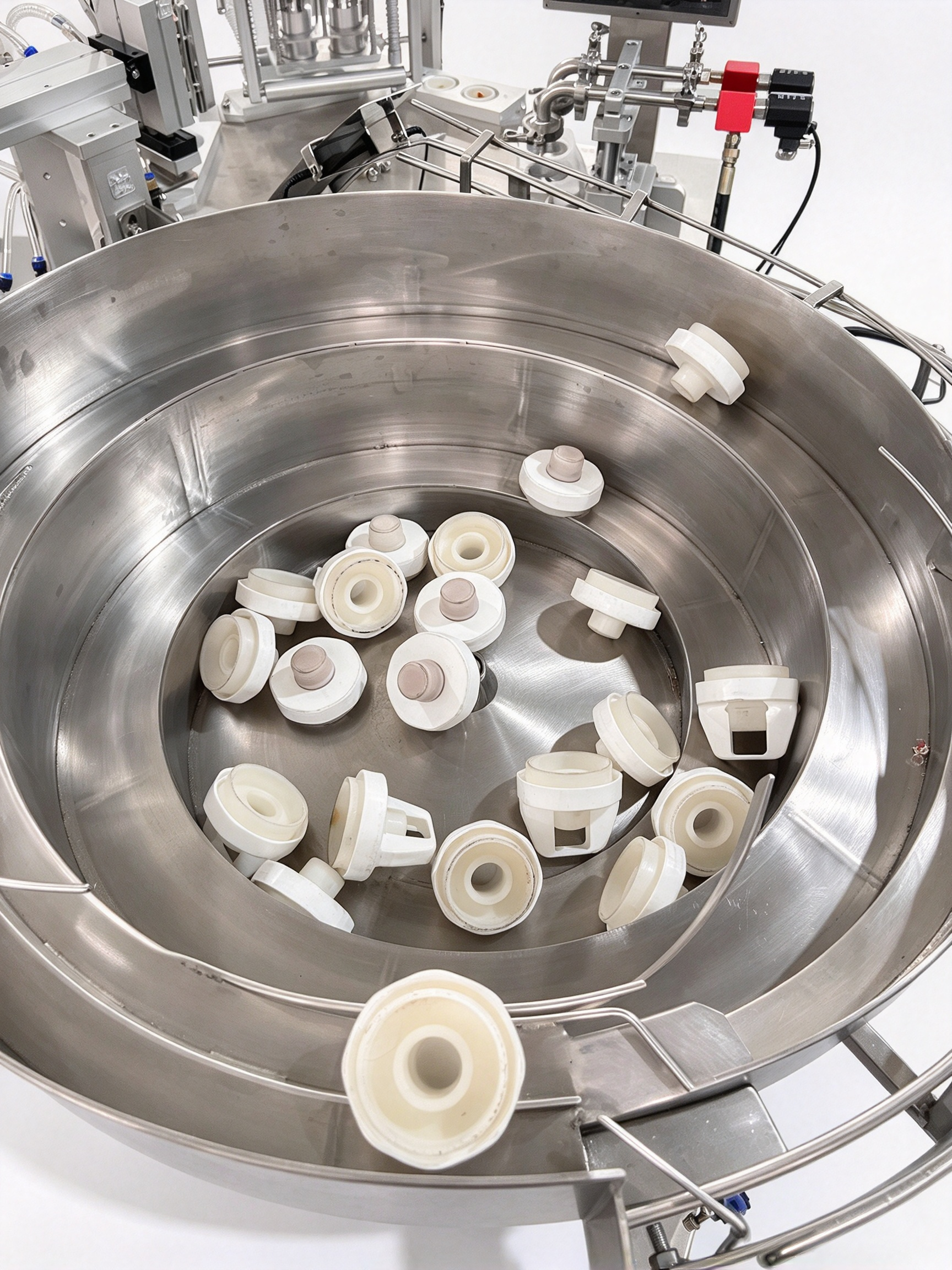

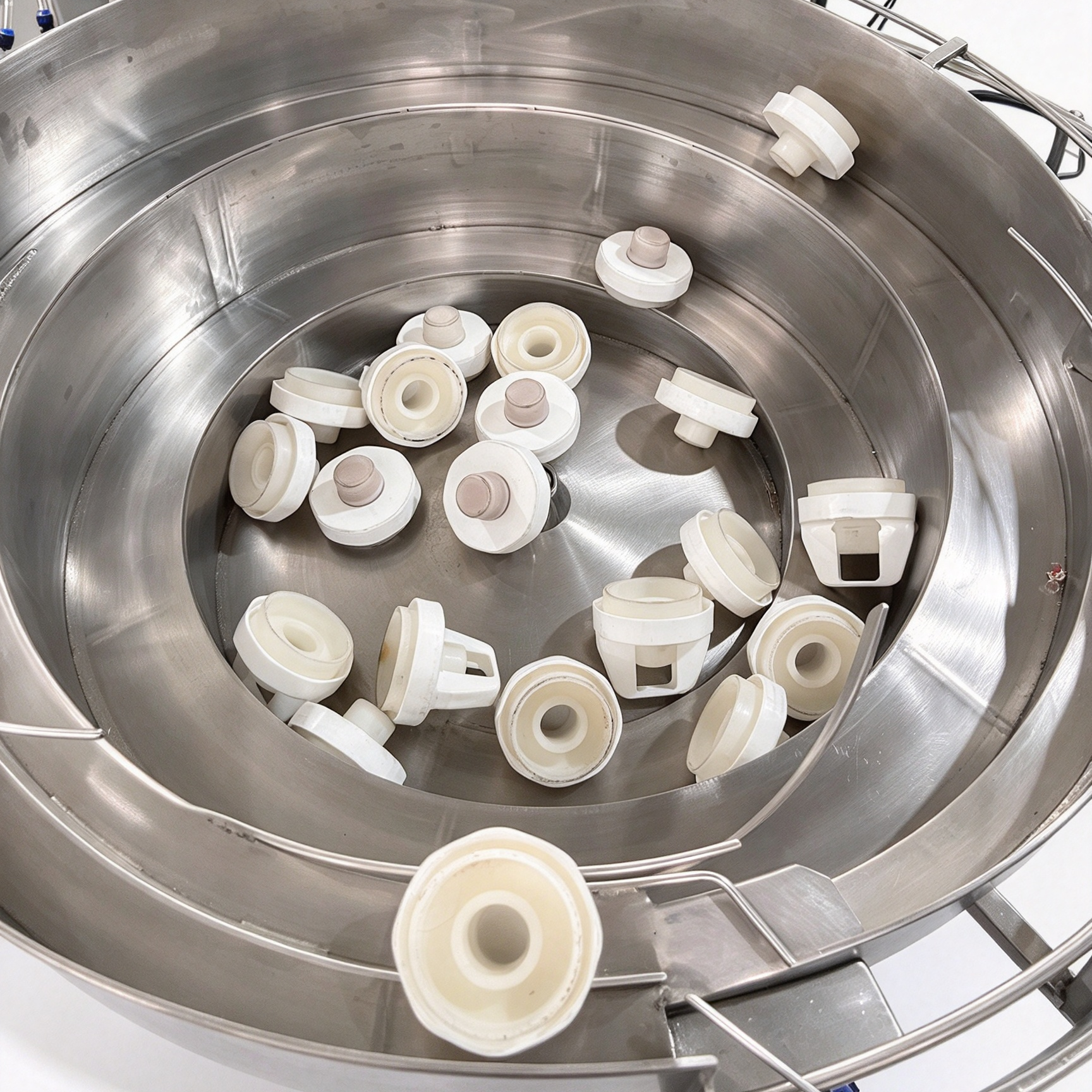

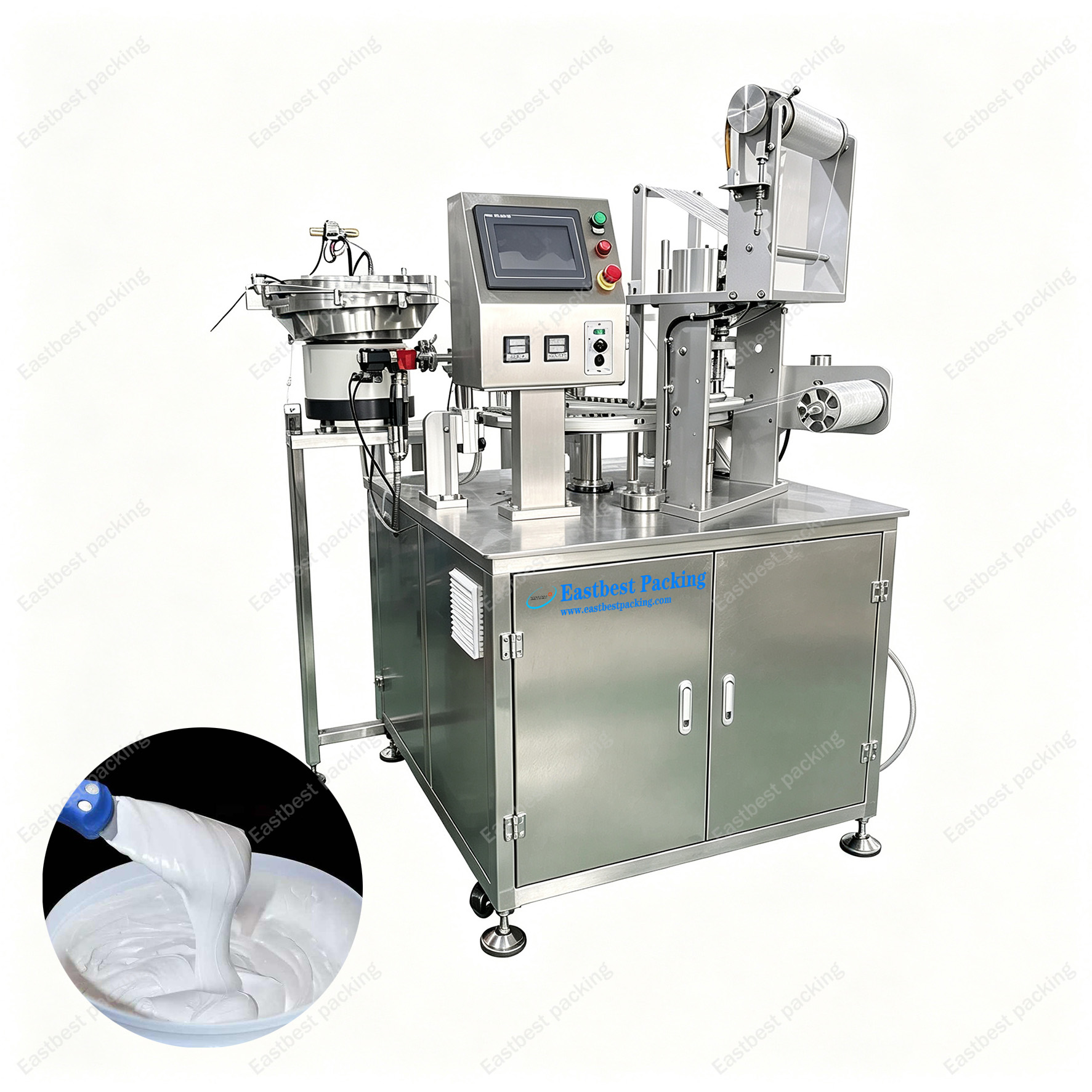

Sorting & Feeding Mechanism


The vibrating plate automatically sorts loose caps and feeds them one by one in the correct direction, ready for the capping station withoutmanual work.

The vibrating plate automatically sorts loose caps and feeds them one by one in the correct direction, ready for the capping station without manual work.

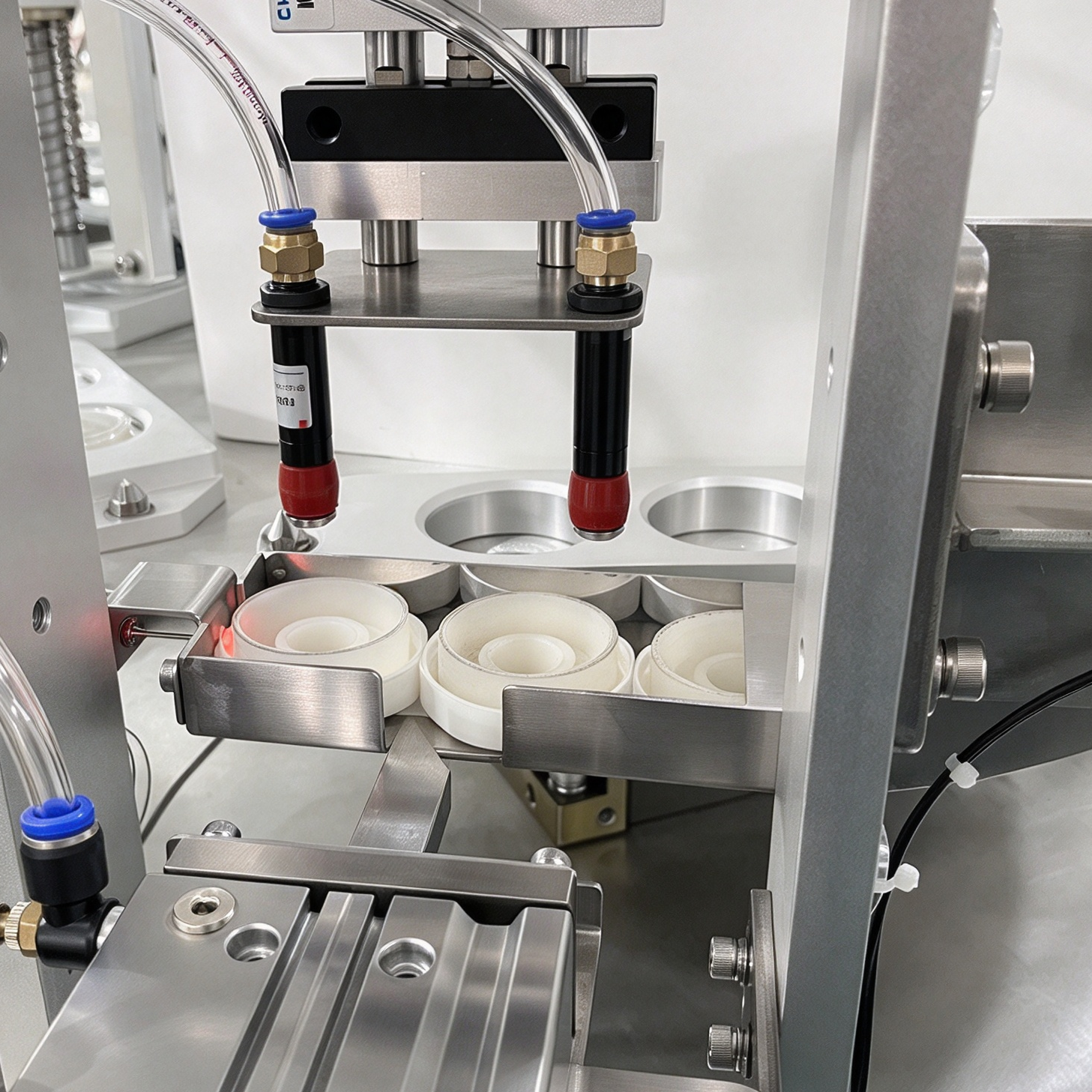

Automatic Cup Dropping

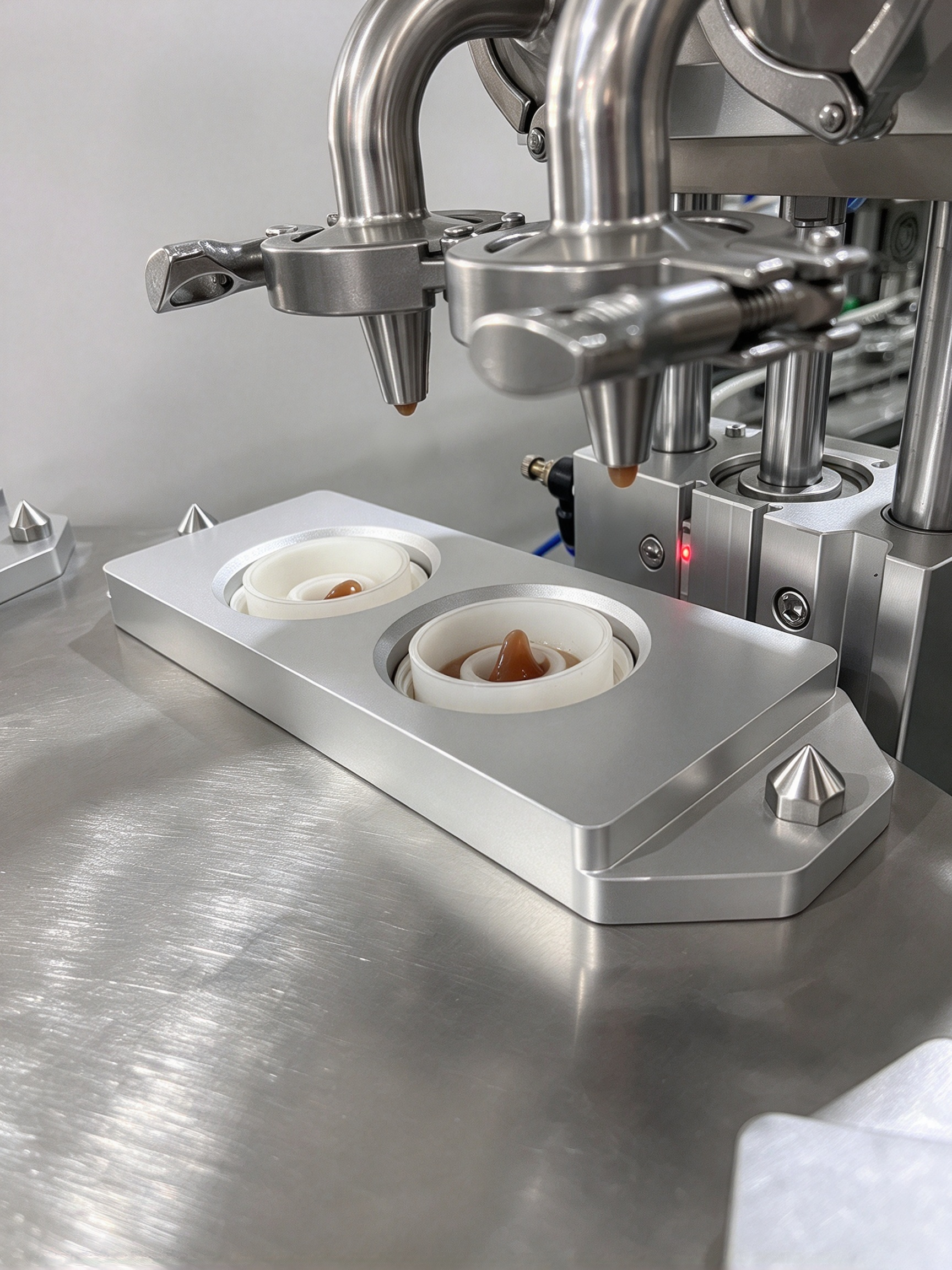

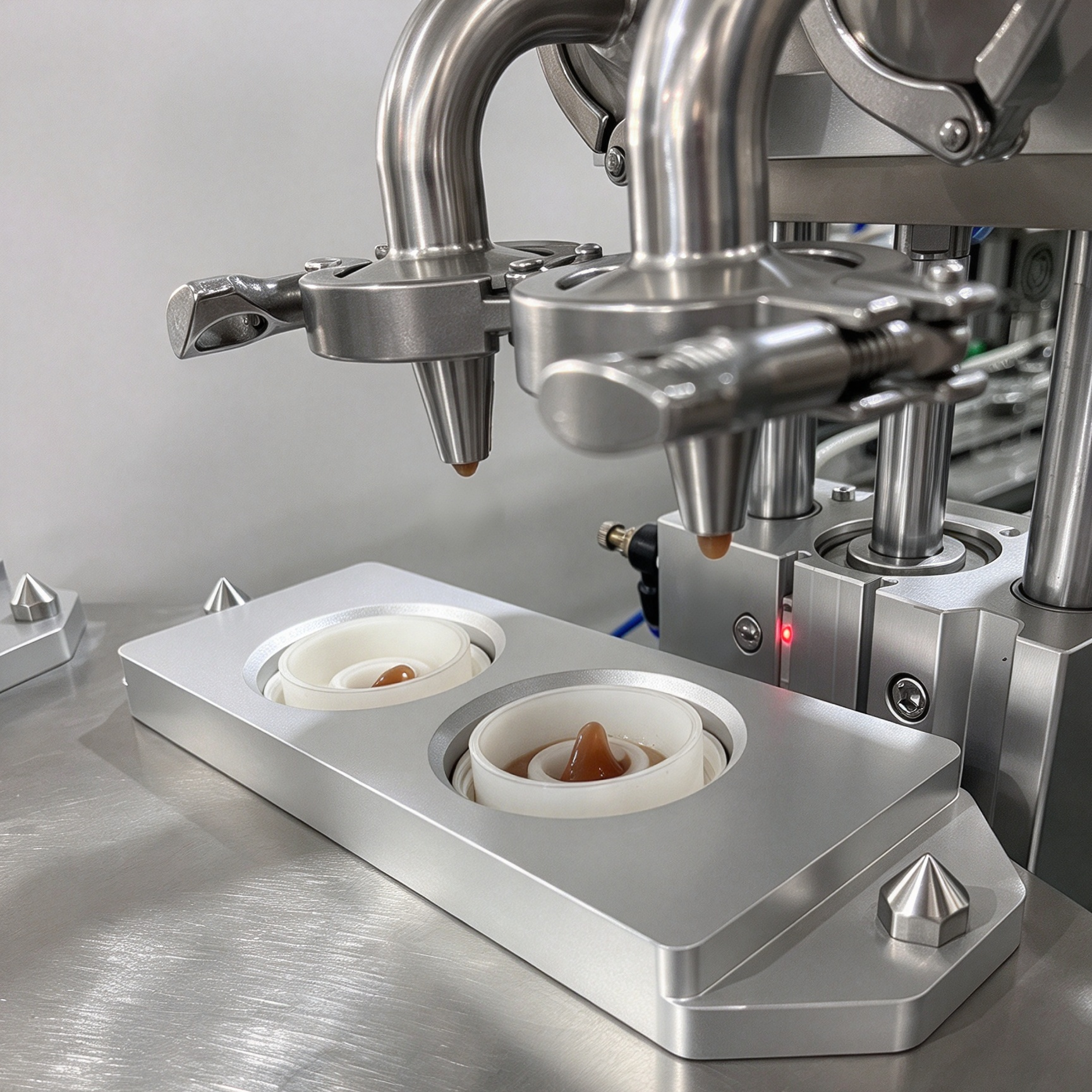

 Liquid / Paste Filling


Servo-driven quantitative filling with ±1% accuracy,specially designed for grease and hig viscosity paste. Anti-drip design ensures clean and precise filling.

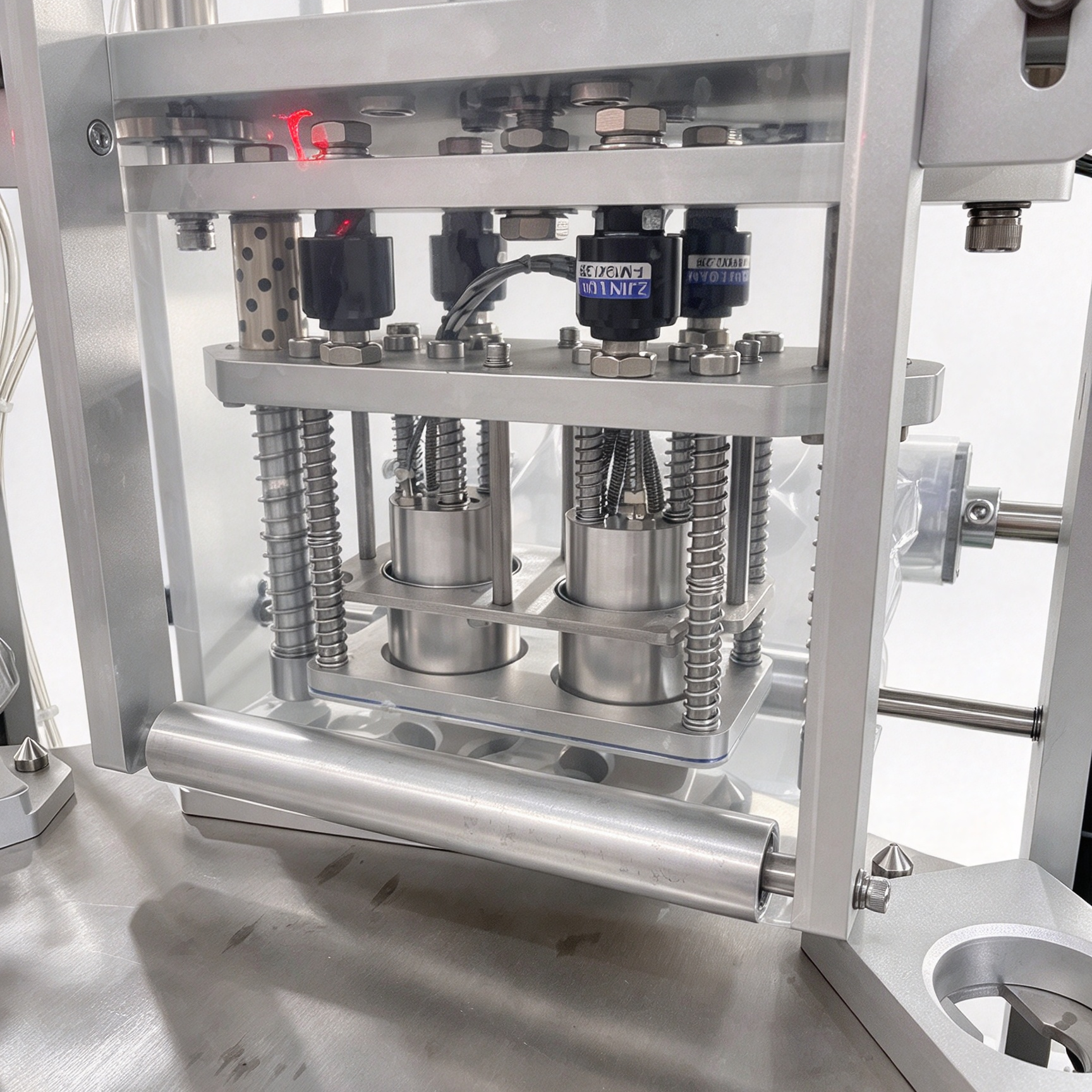

Automatic film feeding, sealing and cutting in one synchronized action.

Tight seal, clean cut, adjustable temperature and film length.

Automatic Sealing

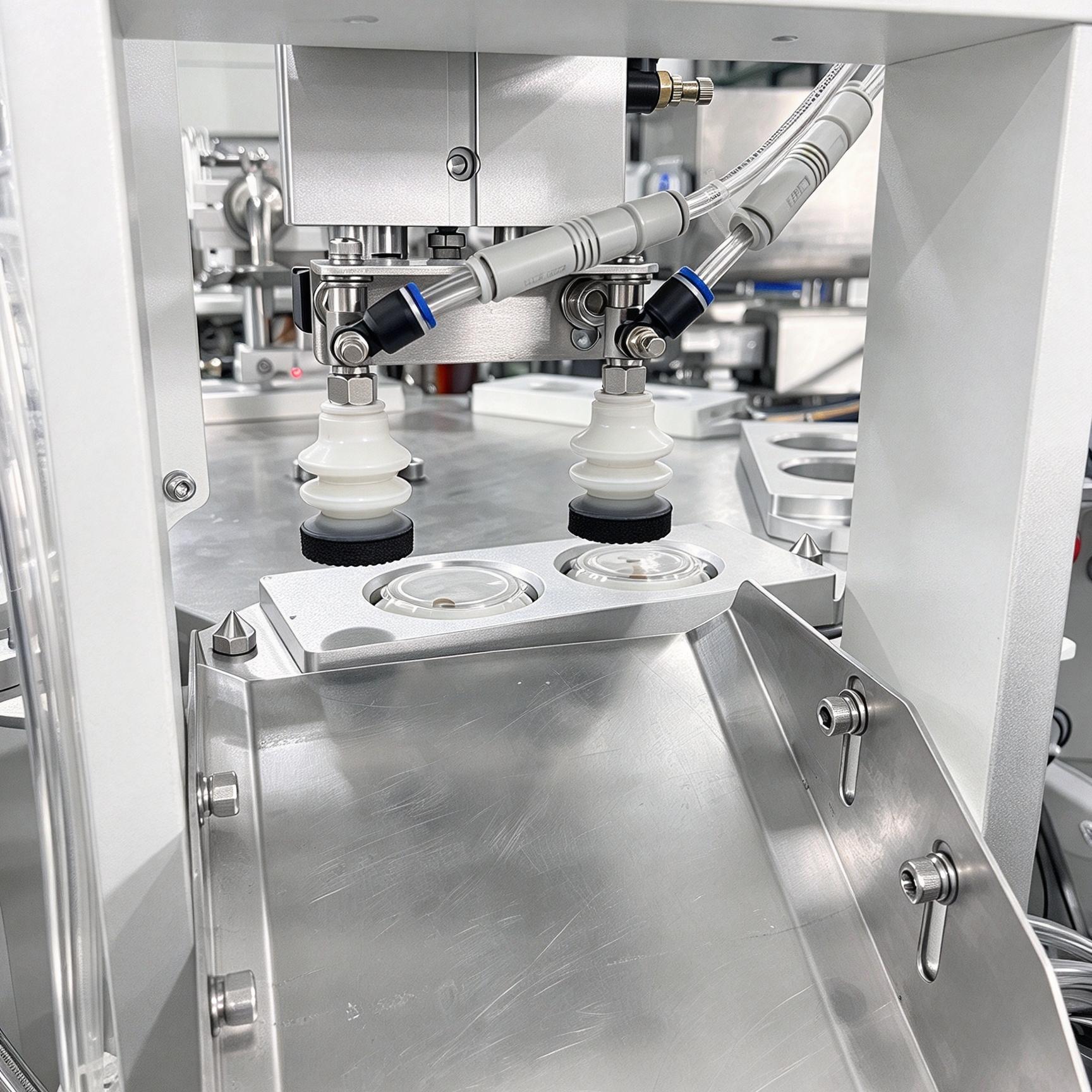

Automatic Cap Discharging


Finished caps are gently picked up by vacuum suction cups and discharged automatically, synchronized with the rotary table for stable high-speed production.

Seal is tight and flat for good-looking finished products

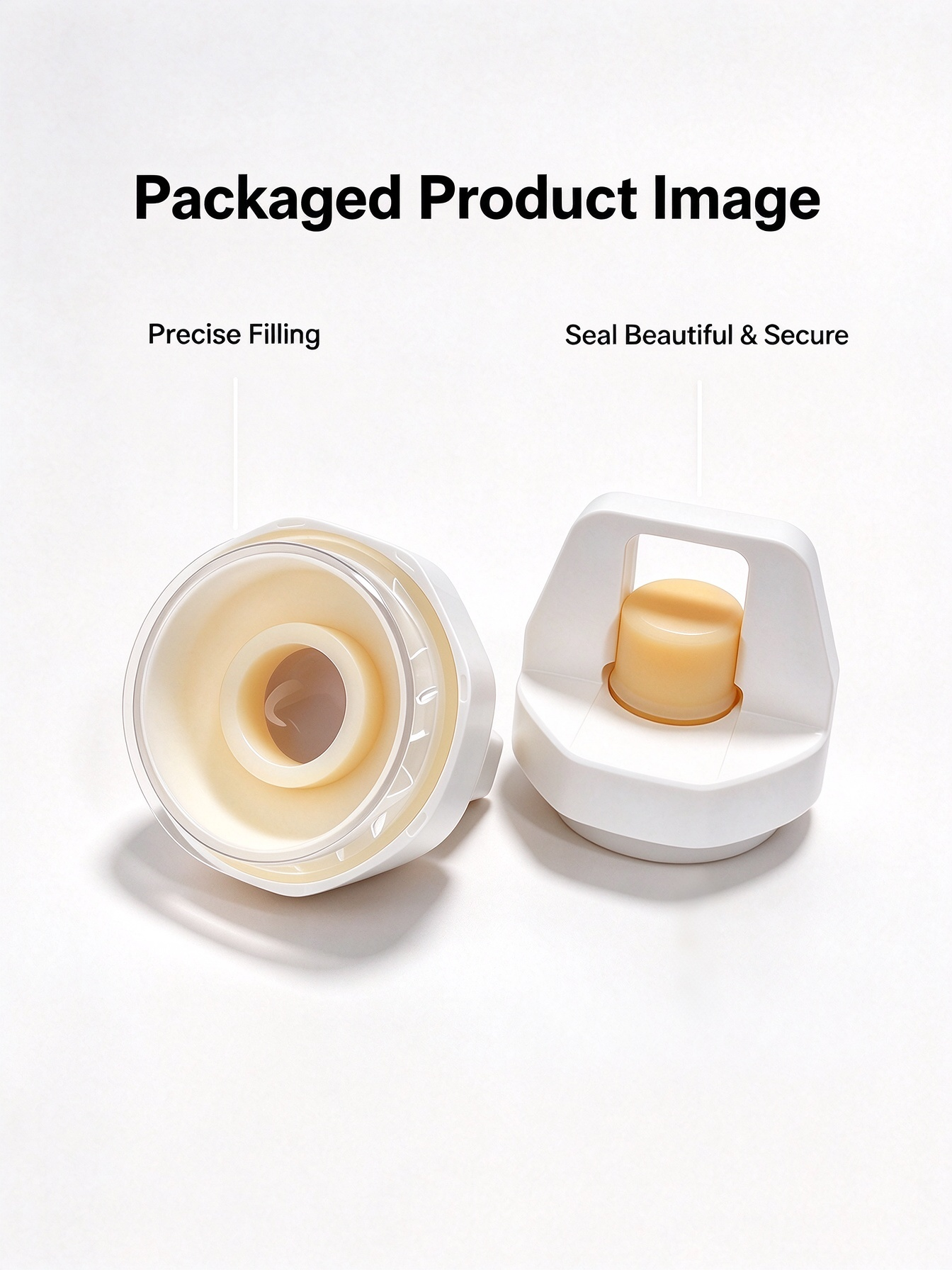

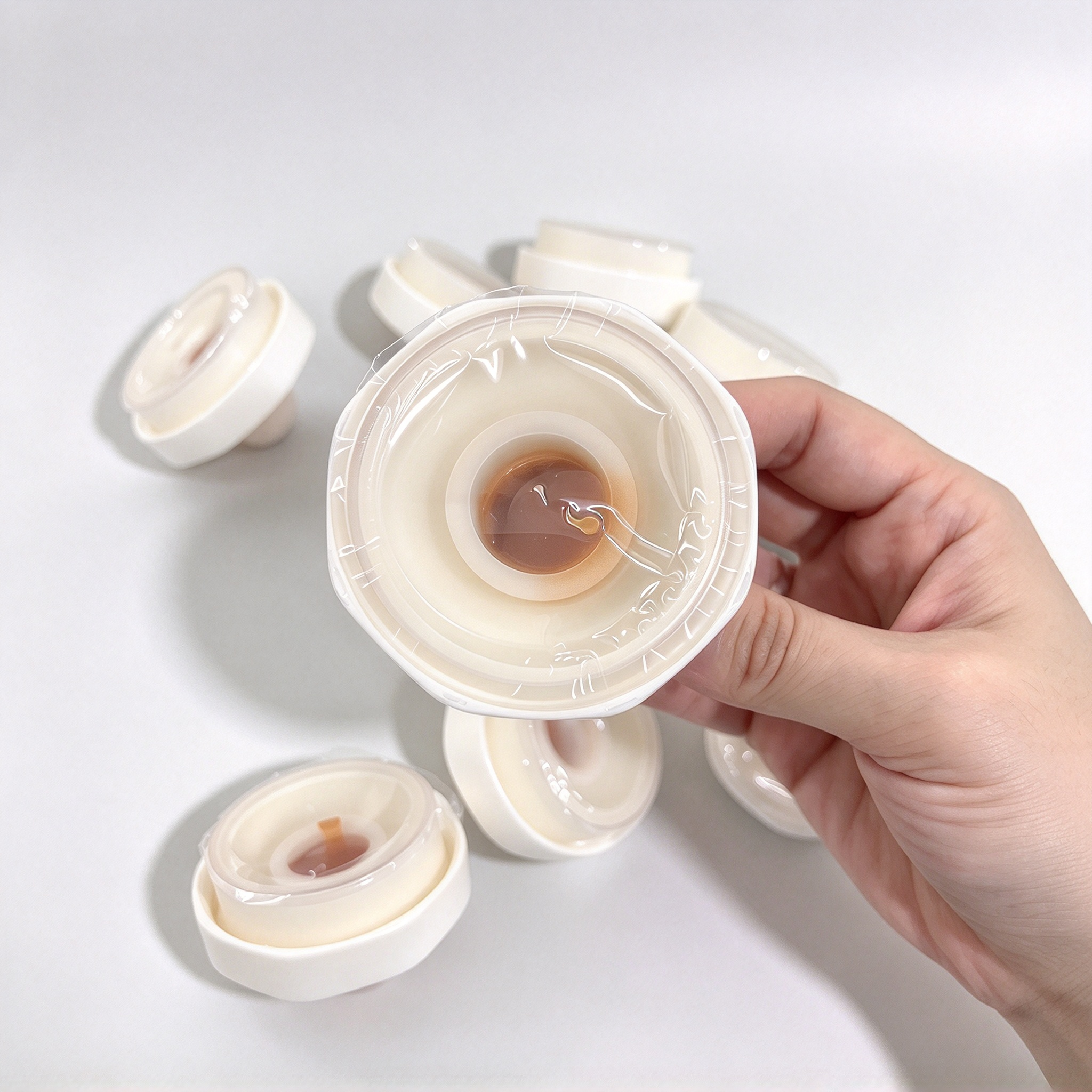

Finished Products

1.图片处理 (25).png

Item

Specification

Production Capacity

1500–2000 pcs/hour

Processing Functions

Cap sorting by vibrating plate, suction cup cap placing, quantitative filling, film sealing & cutting, automatic cap discharging

Applicable Material

Grease, lubricating paste and other high-viscosity paste materials

Container Type

Plastic caps, aluminum caps, customized cap size & shape

Filling Accuracy

±1-2%

Filling Range

Customizable according to cap size

Machine Material

Standard: 304 stainless steel; Optional: 316 stainless steel

Power Supply

220V/380V, 50/60Hz (Customizable)

Working Air Pressure

0.6–0.8 MPa

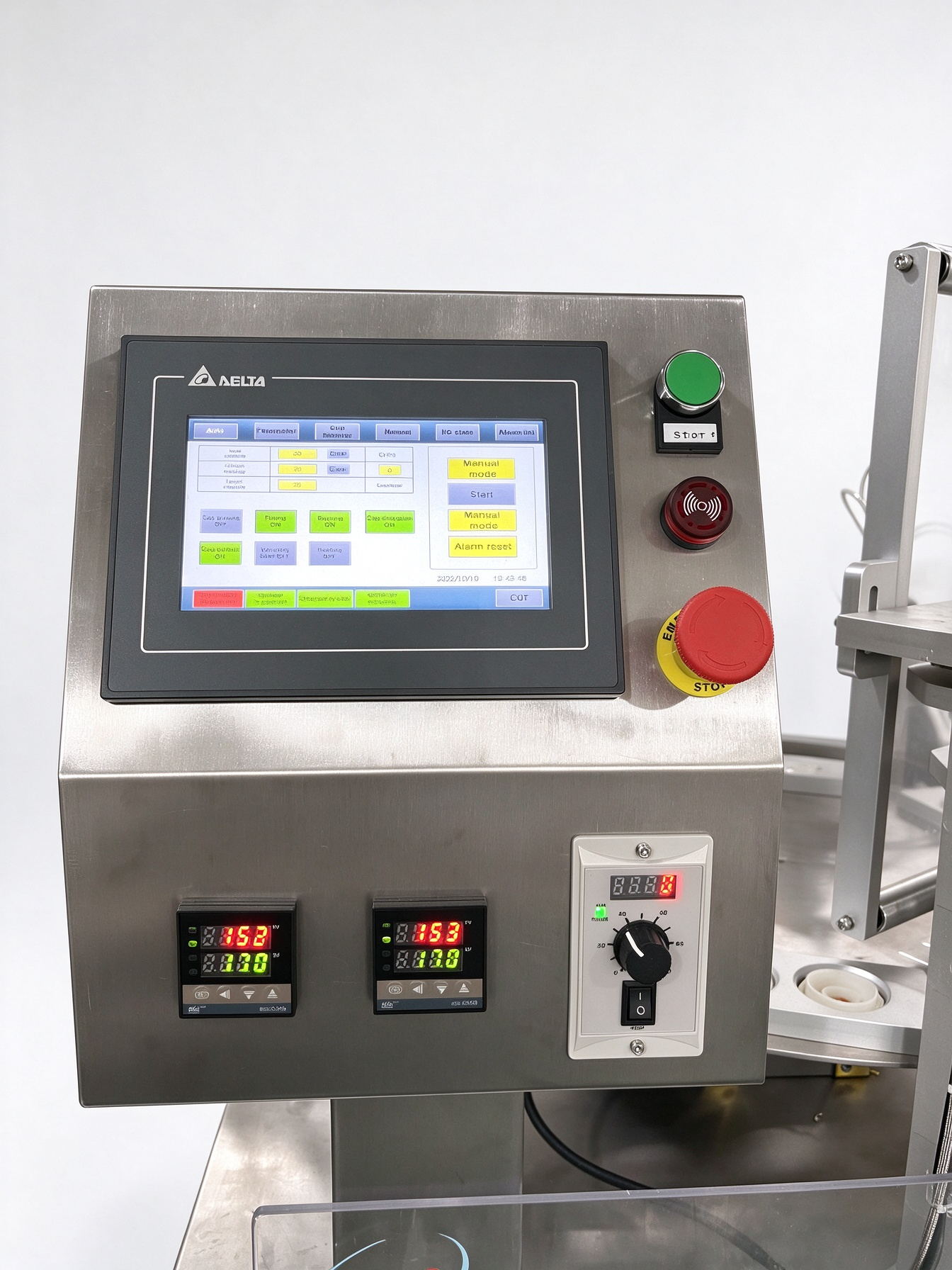

Control System

PLC + Touch Screen

Customization

Support custom stations, molds, filling range and auxiliary devices

Warranty

1 year

Leadtime and shipping

Delivery Time: 1-2 weeks

Quality Warranty: 24 months

Packaging Terms: export wood case

                                                                                            Quality Statement

Dear Customers:

This is to certify that the above machine described herein is meet CE ISO requirement, and in good working condition before shipment.We guarantee this machine 2 year warranty from date of purchase.

If any parts , exclude consumable parts , in our judgment prove to defective and fail to perform to specification,We provide free repair or replace service.


                                                                                                                             Qingdao Eastbest Packing Equipment Co.,LTD
