Curious how factories package at scale without chaos? A Vertical Form Fill Seal (VFFS) machine forms film into bags, fills product, then seals—automatically. It boosts throughput to 30–300 bags per minute, reduces labor, and saves floor space. In this post, you’ll learn components, step-by-step operation, types, fillers, and selection.
What is a Vertical Form Fill Seal (VFFS) Machine?
Step-by-Step Process – How Do Vertical Form Fill Seal Machines Work?
Types of Vertical Form Fill Seal Machines
Applications of VFFS Machines Across Industries
How to Choose the Right VFFS Machine for Your Business
Common Questions About VFFS Machines (FAQs)
Conclusion – The Role of VFFS Machines in Packaging Success

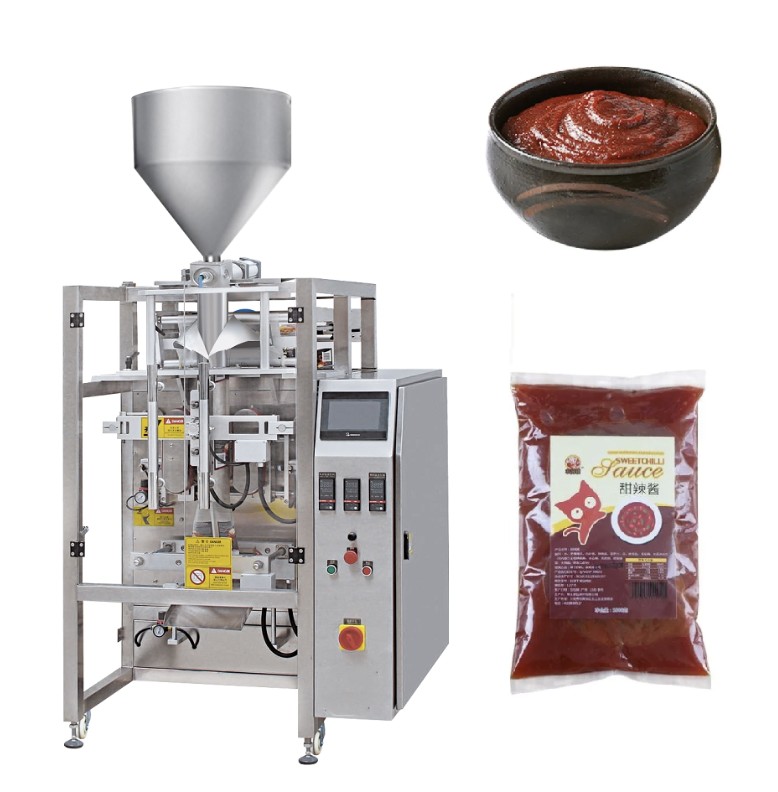

A Vertical Form Fill Seal machine, or VFFS, is a packaging system that automates bag creation, filling, and sealing. It takes a roll of film, shapes it into a pouch, fills it with product, and seals it tight. Businesses use it to improve speed and cut labor costs.
It combines forming, filling, and sealing into one streamlined process.
Machines can run at 30–300 bags every minute.
They cut errors and keep packaging consistent.
Floor space is saved since the machine operates vertically.
A Vertical Form Fill Seal (VFFS) machine turns a flat roll of film into a finished bag in one smooth, continuous rhythm. Each step is timed so that every bag is the same size, weight, and seal quality. Below is a clear walk-through of what happens inside the machine, from film roll to boxed product.
The process starts at the back of the machine. A large roll of film is placed on a powered unwind shaft. The machine pulls the film with rubber belts, keeping the speed steady. A brake or clutch stops the roll from spinning too fast, so the film never sags or snaps. If the roll is heavy, a motor helps turn it, saving effort during change-over.
Before the film reaches the forming tube, it passes through a set of rollers and a dancer arm. The dancer arm moves up and down like a see-saw, taking up slack and holding the film under constant tension. This keeps the film flat and prevents wrinkles. A printer (thermal or ink-jet) can be placed here to add the date, lot code, or logo. The printer reads a photo-eye mark on the film, so every code lands in the same spot.
The flat film is pulled over a shaped metal tube called the forming shoulder. The shoulder folds the film into a tube. The style of the shoulder decides the bag shape:
A simple collar makes a flat pillow bag.
Side gussets can be added for a block-bottom look.
A special insert can create a stand-up pouch or a zipper profile.
While the film wraps around the tube, the vertical seal bar heats the back seam, turning the sheet into a continuous tube.
| Bag Style | Common Use | Example Product |
|---|---|---|
| Pillow Pack | Simple, low-cost | Chips, candies |
| Gusseted Bag | Extra volume | Coffee, flour |
| Quad Seal Bag | Premium look | Pet food, snacks |
| Stand-Up Pouch | Shelf presence | Sauces, nuts |
| Zipper Bag | Resealable convenience | Spices, powders |
With the film now a tube, horizontal jaws close on it. The top jaw seals the bottom of the new bag, while the bottom jaw seals the top of the previous bag. Both jaws carry heaters, so the plastic melts together in a fraction of a second. Cooling blocks press the seam immediately after, so the seal sets strong and flat. The distance between the jaws decides the bag length; this is set from the touch-screen and can be changed in seconds.
While the jaws are open, product is dropped through the centre of the forming tube. The dosing tool is chosen to match the product:
Multi-head weigher for sweets or frozen veg.
Auger screw for flour or protein powder.
Piston pump for ketchup or shampoo.
The weigher or pump sends a signal only when the target weight is reached, so every bag is within legal limits. A small funnel inside the tube guides the product, so nothing touches the hot seal area.
Once the horizontal seal is complete, a knife inside the jaws cuts the film. The knife can be set to:
Cold cut – a simple blade for thin films.
Hot knife – melts through thick or laminated films.
Perforating blade – leaves the bags attached in a strip for manual packing.
Each cut is timed with the jaw close, so the bag length is identical and the seal edge is neat.
The finished bag drops onto a short out-feed conveyor. From here it can travel to:
A check-weigher that removes under- or over-weight packs.
An X-ray or metal detector that finds foreign bodies.
A case-packer or pick-and-place robot that loads bags into cartons.
The conveyor height and speed match the VFFS cycle, so bags do not pile up or tip over.
Modern VFFS lines can be fitted with extras that make the bag more consumer-friendly and the process more reliable:
Tear notches – a small knife nick so the customer can open the bag without scissors.
Gas flushing – a gentle stream of nitrogen pushes oxygen out before sealing, extending shelf life for coffee or cheese.
Zipper applicator – a pre-made zipper strip is sealed into the top of the bag, giving re-close convenience.
Hole punch – creates a euro-slot or round hang-hole for retail display.
Bad-bag reject – a pusher or air blast removes any pouch that fails the weight or vision check, keeping the good flow intact.
These options are modular: they can be added later as brand needs change, without replacing the whole machine.
From film roll to sealed bag, the entire cycle takes only a few seconds. Each step is monitored by sensors, so if anything drifts—film tension, seal temperature, fill weight—the machine alerts the operator or corrects itself. The result is a steady stream of clean, accurate, retail-ready bags that are easy to pack, ship, and sell.
Not every VFFS machine works the same way. They differ in design, cost, and speed. Here are the main types most buyers compare.
These rely on compressed air to move sealing jaws and cutting parts. They are common in small to medium operations.
Pros:
Lower cost, easy for beginners to maintain
Durable under basic packaging demands
Cons:
Less precise sealing, especially at higher speeds
Slower cycle rates compared to advanced models
Higher energy use since it needs constant air supply
This type uses electric servo motors for motion control. It allows smoother, more accurate operations.
Pros:
Faster bag output, ideal for high-volume plants
Higher accuracy on both sealing and cutting
Energy-efficient since it avoids compressed air
Flexible for different film types and bag formats
Cons:
Higher upfront investment than pneumatic systems
More complex, requiring trained operators or technicians
Quick Comparison Table
| Feature | Pneumatic VFFS | Servo-Driven VFFS |
|---|---|---|
| Initial Cost | Lower | Higher |
| Speed | Slower | Faster |
| Precision | Moderate | High |
| Energy Use | High (air) | Low (electric) |
| Flexibility | Limited | Wide range |
Intermittent motion: The film stops, sealing jaws close, product fills, then the cycle repeats. It suits medium speeds and simpler bags.
Continuous motion: Film never stops moving. Sealing and filling happen in sync as the web flows. It’s faster, smoother, and ideal for high-capacity lines.
Some businesses pick intermittent to save costs. Others choose continuous when speed and efficiency drive profits.
VFFS machines adapt easily to different products. They package powders, liquids, or solids in flexible pouches. Each industry uses them for its own reasons.
Food brands rely on speed and freshness. The machine forms airtight pouches to lock flavor in. Snack makers use pillow packs for chips. Grain suppliers choose gusseted bags for rice. Frozen food producers prefer thicker laminates for long shelf life.
Examples:
Nuts, popcorn, candies
Rice, beans, flour
Vegetables, ready-to-cook meals
Powdered drink mixes and ground coffee need protection from air and moisture. A VFFS machine creates foil-laminated packs that block oxygen. It also forms quad seal bags that stack well on shelves.
Packaging Features Table
| Product Type | Preferred Bag Style | Key Benefit |
|---|---|---|
| Coffee | Quad seal, gusseted | Freshness, premium look |
| Drink mix | Pillow pack, zipper | Easy storage, reseal |
Pet food comes in bulk, so strength matters. VFFS machines make large-capacity bags that can hold kibble or treats. They also produce resealable zipper pouches, perfect for daily feeding convenience.
Kibble in heavy quad seal bags
Small treats in stand-up zipper packs
Nutritional supplements in sealed powder pouches
The cosmetics industry values style as much as safety. VFFS machines create sleek, branded sachets for creams or powders. Flexible bags cut shipping costs while still looking premium on store shelves.
Common Uses:
Single-dose cream sachets
Face mask powders
Cosmetic sample packs
VFFS packaging isn’t limited to food or beauty. It also handles chemicals, detergents, and DIY materials. It seals products tightly, protecting them from leaks or spills.
Fertilizer granules in laminated bags
Detergent powder in gusseted pouches
Household cleaners in liquid sachets
Not every company needs the same packaging setup. Picking the right VFFS machine depends on what you sell and how you sell it.
Product type: Powders, liquids, or solids require different fillers. Powders work best with augers, liquids need piston fillers.
Film material: Laminates, foils, or polyethylene films affect seal strength. Machines must match film type.
Packaging format: Pillow bags, quad seals, or stand-up pouches. The chosen style influences shelf appeal.
Speed: High-volume factories may need continuous motion machines. Smaller plants can start slower.
Budget: Entry-level pneumatic machines cost less. Servo-driven ones deliver better precision but require more investment.
Quick View Table
| Factor | Options | Impact on Choice |
|---|---|---|
| Product type | Solid, liquid, powder | Select filler system |
| Film material | Foil, laminate, PE | Match sealing technology |
| Packaging format | Pillow, gusseted, quad, stand-up | Affects shelf display, cost |
| Speed | Intermittent, continuous | Defines output per minute |
| Budget | Low (pneumatic) / High (servo) | Influences ROI timeline |
In-house: Full control of quality, faster lead times, better brand consistency. But it requires upfront investment and trained staff.
Outsourcing: No big capital cost, flexible for small batches. Yet companies lose some control and may face longer timelines.
We often see startups outsource first. Growing brands bring packaging in-house once volume justifies machine ownership.
High output targets and strict accuracy make servo-driven systems worth the cost.
Advanced models include gas flushing, resealable zippers, or smart sensors. They reduce waste, extend product life, and boost efficiency.
Businesses scaling fast should consider investing early. It prevents costly upgrades later.
A: It takes roll film, forms it into bags, fills them with product, and seals them automatically.
A: Snacks, grains, coffee, powders, liquids, pet food, cosmetics, and even household or chemical items.
A: Depending on model, it can produce between 30 and 300 finished bags every minute.
A: Pillow packs, gusseted bags, quad seals, stand-up pouches, spouted packs, and zipper resealable bags.
A: Yes, it handles food, beverages, cosmetics, pet nutrition, chemicals, and other industrial products effectively.
A: Regular cleaning of sealing jaws, filler parts, and sensors. Periodic checks of belts, blades, and motors.
Vertical Form Fill Seal (VFFS) machines transform simple rolls of film into shelf-ready pouches with speed and precision. They streamline forming, filling, and sealing into one smooth process, helping businesses cut labor, save space, and reach outputs of up to 300 bags per minute. From snacks to coffee, pet food to cosmetics, these machines power packaging across industries while ensuring accuracy, freshness, and consistency.
